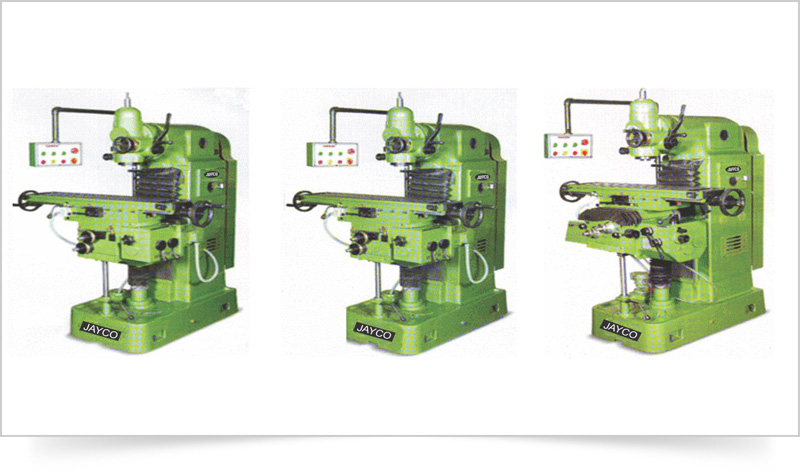

| Specification | S-2V | S-3V | SA-4V |
| Working Surface |
1125 x 250 |
1400 x 280 |
1680 x 320 |
| No. of T-Slots / Size |
3 x 16 |
3 x 16 |
3 x 16 |
| Distance Between T-Slots |
63 |
63 | 63 |
| Table Swivel on Either Side |
+-25 |
+-45 |
N/a |
| Cross Feed by hand |
250 |
280 |
320 / 300 |
| Vertical Feed by hand |
425 |
525 |
550 / 525 |
| Longitudinal Feed by hand/auto |
600 / 580 |
750 / 720 |
900 / 860 |
| After mounting Vertical Attachment |
Quill 60mm |
Quill 80mm |
Quill 80mm |
| Safe weight on Table |
150 |
200 | 250 |
| No. of Spindle Speed |
9 |
12 | 12 |
| Range of Spindle Speed |
50-812 |
50-1000 | 50-1000 |
| Spindle Nose Taper |
ISO-40 |
ISO-50 | ISO-50 |
| No. of Feeds |
4 |
4 | 4 |
| Longitudinal Feed mm/re |
29, 43, 54, 70 |
15, 30, 45, 75 | 16-834 Long 24-1251 Cross 4-207 Vertical |
| Spindle Motor |
2.2kw / 2hp |
3.7kw / 5hp | 3.7kw / 5hp |
| Coolant Pump Motor |
0.75kw / 1hp Feed 0.1hp |
0.75kw / 1hp Feed 0.1hp |
0.75kw / 1hp Feed 0.1hp |
| Overall Dimensions Approx | 620 x 1030 x 1680 |
700 x 1220 x 1880 | 750 x 1370 x 2150 |
| Machine Weight Approx |
2200 Kgs. | 2500 Kgs. | 3000 Kgs. |
Standard Equipments
Dia 1" Arbour with bushes, motor pulley, Vertical Attachment for Universal milling, spindle lock with limit switch, handle, toolkit & instruction manual.Optional Accessories :
| Universal Dividing Head |
Rack Cutting Attachment |
Milling Vice 8" |
Machine Lamp |
ISO-40 Stud Arbour |
| Rotary Table (300mm) | Milling Vice 6" | Coolant Equipment | ISO-40 Adaptor without collet | Collets |
