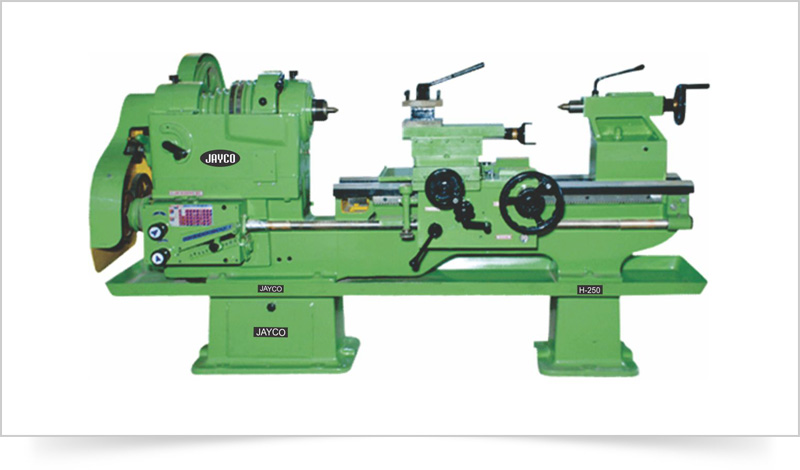

| Specification | H-250 10" CH | H-300 12" CH | H-375 15" CH |
| Standard | Optional | Optional | |
| Center Height |
250mm | 300mm | 375mm |
| Admit Between Center |
450-4000mm | 450-4000mm | 450-4000mm |
| Swing over bed |
475mm | 595mm | 735mm |
| Swing over Cross Slide |
300mm | 400mm | 535mm |
| Swing in Gap |
785mm | 885mm | 1000mm |
| Width of Gap |
200mm | 200mm | 200mm |
| Width of Bed |
325mm | 325mm | 325mm |
| Spindle Nose Bore / Taper |
Threaded / 52mm / MT-5 | Threaded / 52mm / MT-5 | Threaded / 52mm / MT-5 |
| Spindle Speed / Range |
8/30-550rpm |
8/30-550rpm | 8/30-550rpm |
| Motor | 3hp |
3hp | 3hp |
| Tailstock RAM Dia. | 63mm |
63mm | 63mm |
| RAM Travel / Taper | 200mm / MT-4 | 200mm / MT-4 | 200mm / MT-4 |
Hardened and ground bed, Threaded Nose Spindle, Change Gears for MM/INCH Threads, Switch for Reverse/Forward operation, complete with Electric Motor and Electrical, Machine is Tested to IS-1878 (Part) 1993.
Standard Accessories
Complete with electrical for 415 volts, 50 cycles, 3ph supply, Carrier Plate, Center Bush, 2Nos. MT Dead Center, Tool post spanner, thread dial indicator, Switch for Rev/Forward operation, 4 way tool post and instruction manual with beam packing.Optional Accessories :
| 80 mm Spindle Bore | 4 Jaw Independent Chuck |
Revolving Center |
Machine Lamp |
| Face Plate | Steady Rest PAD Type |
Taper Turning Attachment |
Coolant Pump |
| Chuck Plate |
Steady Rest BRG. Type |
Rear Toolpost |
Norton Gear Box |
| 3 Jaw True Chuck | Follow Rest PAD Type | Quick Change Toolpost |
