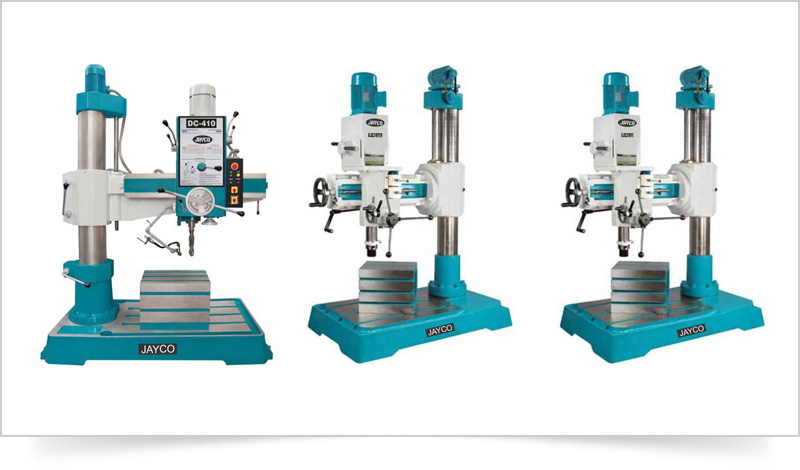

| Specification | Model DC-410 RADIAL |
Model R40-AA RADIAL |
Model R40-G RADIAL |
| Drilling Capacity MS/CI |
42/50mm |
40/45mm |
40/45mm |
| Tapping in MS |
25mm |
25mm |
25mm |
| Spindle Taper / Travel |
MT-4 / 225mm |
MT-4 / 250mm |
MT-4 / 250mm |
| Nos. of Spindle Speed |
12 / 60-1510rpm |
9 / 58-936rpm |
9 / 58-936rpm |
| Spindle Sleeve Diameter of RAM |
78mm |
78mm |
78mm |
| Nos. of Spindle Auto Feed/Range |
6/0.1-0.52mm/rev |
2/0.05 & 0.09 |
Fine Feed |
| Column Diameter |
225mm |
180mm | 170mm |
| Max./Min. Drilling Radius |
1137mm |
1005mm |
|
| Max./Min. Dist. Spindle Center to Column |
1025/275mm |
900/400mm |
905/385mm |
| Max./Min. Spindle Nose to Base |
1225/450mm |
950/250mm |
850/250mm |
| Vertical Travel of ARM |
775mm |
700mm |
700mm |
| Drill Head Traverse |
750mm |
700mm |
700mm |
| Working Table |
550x450x400mm |
300x300x385mm |
300x300x385mm |
| Drilling Head Motor |
2hp(1.5Kw) 960/1440rpm |
1.5hp |
1.5hp / 960rpm |
| Elevating Motor |
0.75hp (0.5Kw) 960rpm |
1hp |
0.5hp / 1440rpm |
| V-Belts | B-25/B-26 |
B-25/B-26 |
|
| Machine L x W x H | 1600 x 850 x 2270mm | 1200 x 780 x 2100mm | 1350 x 850 x 1825mm |
Standard Equipments
Complete with Electrical suitable for 415v/50Hz/3ph AC supply with Motor, Panel board, switches, Motor pulley.Optional Accessories :
| Tapping Control Panel |
Machine Lamp |
Drill Chuck with Arbour MT-2 or MT-3 |
| Coolant Pump with Tank & Fittings | Box Table | Drill Chuck with Arbour MT-4 |
