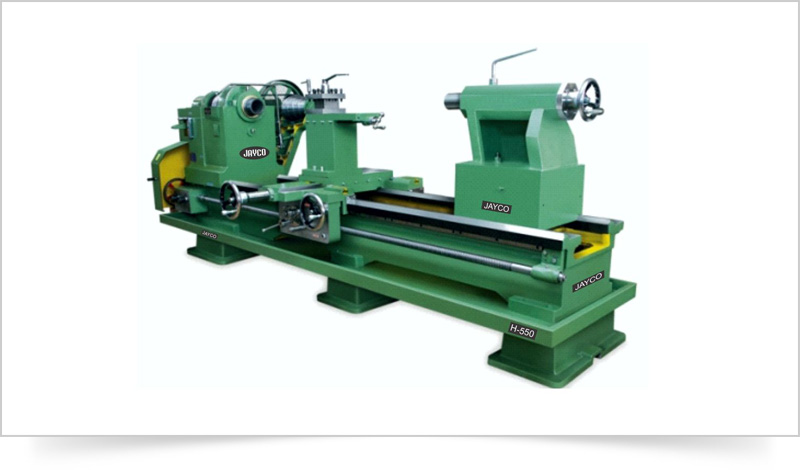

| Specification | H-400 | H-450 | H-500 | H-550 |
| Center Height |
400mm | 450mm | 500mm | 550mm |
| Admit Between Center |
1000mm-7000mm | 1000mm-7000mm | 1000mm-7000mm | 1000mm-7000mm |
| Swing over bed |
800mm | 900mm | 1000mm | 1100mm |
| Swing over Cross Slide |
500mm | 600mm | 700mm | 800mm |
| Swing in Gap |
1150mm | 1250mm | 1350mm | 1450mm |
| Width of Gap |
300mm | 300mm | 300mm | 300mm |
| Width of Bed |
450mm | 500mm | 550mm | 600mm |
| Spindle Nose | Threaded | Threaded | Threaded | Threaded |
| Spindle Bore / Taper |
104mm / MT-6 | 104mm / MT-6 | 104mm / MT-6 | |
| Spindle Speed / Range |
8 / 20-300rpm | 8 / 20-300rpm | 8 / 20-300rpm | 8 / 20-300rpm |
| Motor | 5hp / 7.5hp / 10hp | 5hp / 7.5hp / 10hp | 5hp / 7.5hp / 10hp | 5hp / 7.5hp / 10hp |
| Tailstock RAM Dia. | 100mm | 100mm | 100mm | 100mm |
| RAM Travel / Taper | 250mm / MT-6 | 250mm / MT-6 | 250mm / MT-6 | 250mm / MT-6 |
Hardened and ground bed, Hardened & Ground Threaded Spindle Nose, with Change Gears for Metric/Inch Thread, Turcite-B lining in saddle Guideways, complete with Electric Motor and Electricals, Machine is Tested to IS-1878 (Part) 1993.
Standard Accessories
Complete with electrical for 415 volts, 50 cycles, 3ph supply, Carrier Plate, Center Bush, 2Nos. MT Dead Center, Toolpost spanner, thread dial indicator, 4 way tool post and instruction manual with beam packing.Optional Accessories :
| 125 mm Spindle Bore | 150 mm Spindle Bore |
Norton Gear Box |
Taper Turning Attachment |
| Face Plate | 4 Jaw Independent Chuck |
Follow Rest PAD Type |
Machine Lamp |
| Chuck Plate |
Steady Rest PAD Type |
Revolving Center |
Coolant Pump |
| 3 Jaw True Chuck | Steady Rest PAD Type | Motorized Apron |
