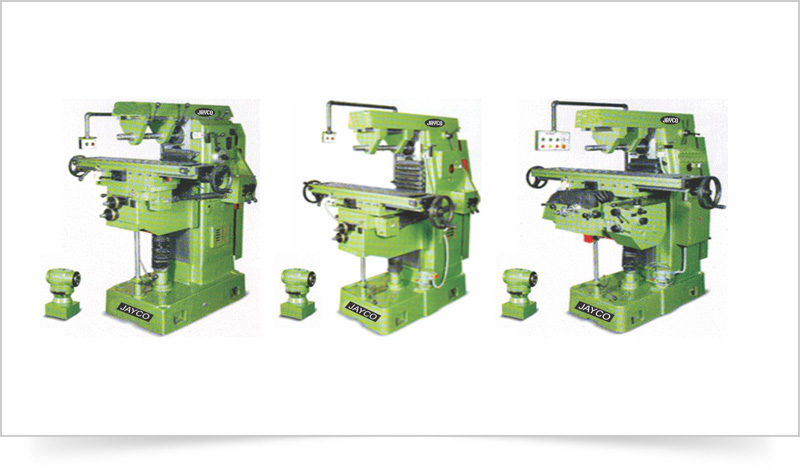

| Specification | S-2H | S-H | S-A4H |
| Working Surface |
1125 x 250 |
1400 x 280 | 1680 x 320 |
| No. of T-Slots / Size |
3 x 16 |
3 x 16 | 3 x 16 |
| Distance Between T-Slots |
63 |
63 | 63 |
| Table Swivel on Either Side |
+-25 |
+-45 | N/A |
| Cross Feed by hand |
250 |
280 | 320 / 300 |
| Vertical Feed by hand |
425 |
525 |
550 / 525 |
| Longitudinal Feed by hand/auto |
600 / 525 |
700 / 725 |
900 / 860 |
| After mounting Vertical Attachment |
300 |
380 |
- |
| Safe weight on Table |
150 |
200 |
250 |
| Spindle Arbour |
25.4 |
25.4 |
- |
| No. of Spindle Speed |
8 |
12 |
12 |
| Range of Spindle Speed |
50-800 |
70-1000 |
50-1000 |
| Spindle Nose Taper |
ISO-40 |
ISO-40 |
ISO-40 |
| Distance from base of over arm to spindle |
143 |
165 |
|
| No. of Feeds |
4 |
4 | 16 |
| Longitudinal Feed mm/re |
0.09, 0.14, 0.20, 0.45 | 0.05, 0.07, 0.11, 0.25 |
16-834 Long 24-1251 Cross 4-207 Vertical |
| Spindle Motor |
1.5kw / 2hp |
2.2kw / 3hp |
3.7kw / 5hp |
| Coolant Pump Motor |
1kw / 0.1hp | 1kw / 0.1hp |
2.2kw / 3hp Feed 1kw / 0.1hp |
| Overall Dimensions Approx |
1430 x 1330 x 1680mm | 1750 x 1550 x 1880mm |
1430 x 1725 x 2150mm |
| Machine Weight Approx | 1600 Kgs. | 2500 Kgs. | 3000 Kgs. |
Standard Equipments
Dia 1" Arbour with bushes, motor pulley, Vertical Attachment for Universal milling, spindle lock with limit switch, handle, toolkit & instruction manual.Optional Accessories :
| Universal Dividing Head |
Rack Cutting Attachment |
Milling Vice 8" |
Machine Lamp |
ISO-40 Stud Arbour |
| Rotary Table (300mm) | Milling Vice 6" | Coolant Equipment | ISO-40 Adaptor without collet | Collets |
