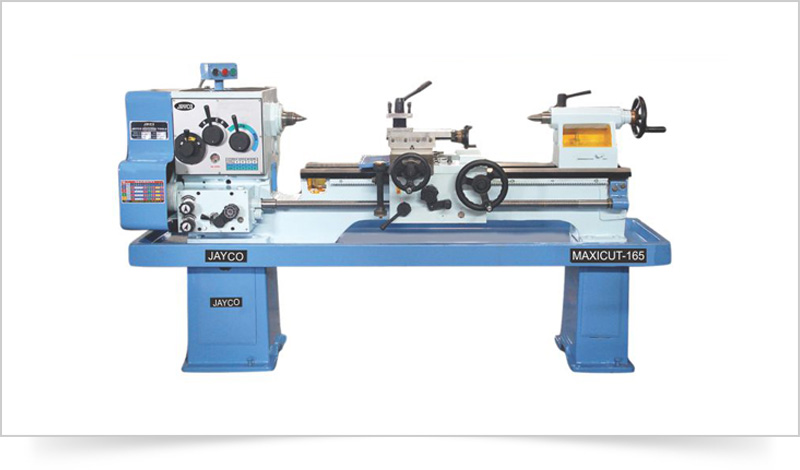

| Specification | MAXICUT-165/650 | MAXICUT-165/800 | MAXICUT-165/1100 |
| CAPACITY | |||
| Center Height |
165mm | 165mm | 165mm |
| Admit Between Center |
650mm | 875mm | 1100mm |
| Swing over bed |
305mm | 305mm | 305mm |
| Swing over Cross Slide |
180mm | 180mm | 180mm |
| Swing in Gap |
500mm |
500mm | 500mm |
| Width of Gap |
110mm |
110mm | 110mm |
| Width of Bed |
238mm |
238mm | 238mm |
| Bed Type |
2V-2Flat | 2V-2Flat | 2V-2Flat |
| Bed Length | 1360mm | 1600mm | 1830mm |
| HEADSTOCK | |||
| Spindle Nose / Dia. |
THREADED Dia. 60mm 8TPI |
THREADED Dia. 60mm 8TPI | THREADED Dia. 60mm 8TPI |
| Spindle Bore / Taper |
40mm / MT - 3 |
40mm / MT - 3 | 40mm / MT - 3 |
| Spindle Speed / Range | 8 / 50-1200rpm | 8 / 50-1200rpm | 8 / 50-1200rpm |
| SLIDE | |||
| Cross Slide Movement |
175mm |
175mm | 175mm |
| Toolpost Slide Movement | 120mm |
120mm | 120mm |
| 1-6mm |
1-6mm | 1-6mm | |
| 2-24TPI | 2-24TPI | 2-24TPI | |
| NORTON GEAR BOX | STANDARD | STANDARD | STANDARD |
| Metric Threads |
19 / 0.05-8mm |
19 / 0.05-8mm | 19 / 0.05-8mm |
| Inch Threads |
23 / 4-40TPI |
23 / 4-40TPI | 23 / 4-40TPI |
| Lead Screw Dia. x TPI | 25.4mm x 4TPI | 25.4mm x 4TPI | 25.4mm x 4TPI |
| TAILSTOCK | |||
| Ram Dia. |
38mm |
38mm | 38mm |
| Ram Travel |
115mm |
115mm | 115mm |
| Taper in Ram | MT-3 |
MT-3 | MT-3 |
| POWER SUPPLY |
415V, 3Ph, 50Hz |
415V, 3Ph, 50Hz | 415V, 3Ph, 50Hz |
| Motor Power |
1hp | 1hp | 1hp |
| FLOOR SPACE OCCUPIED Approx L x W x H |
1650 x 840 | 1880 x 840 | 2100 x 840 |
| Net Weight Approx | 630 Kgs. | 670 Kgs. | 690 Kgs. |
Standard Accessories
| Chuck Plate | Dead Center - 2 Nos | Toolpost Key | Norton Gear box with Change Gears for Inch / MM Threads, |
| Center Adaptor | 4-Position Square Toolpost | Thread Dial Indicator | Motor Pulley |
Optional Accessories :
| Electric Motor with Rev/For Switch & Wiring |
Chuck Plate | 8" x 4 Jaw Independent Chuck | Steady Rest, Follow Rest, |
| Face Plate | 6" x 3 Jaw True Chuck | Taper Turning Attachment |
